Maize Sifting and Flour Milling Machine

Maize Sifting and Flour Milling Machine

Maize sifting and flour milling machine working principle: This machine use activities and the tooth plate relative moti
Send to us
Basic Info.
Customized Customized
Color Sliver
After-Sales Service Provided Online Support
Certification ISO,Ce
Price Low, Cheap, Factory Price
Quality Best Electric Spice Grinding Machine Price
Final Products Flour
Usage Spice Grinding Machine Price
Keywords Spice Grinding Machine Price
Finished Product Super Fine Flour
Capacity 30-70 Kg/H
Raw Material Coarse Cereals
Material Stainless Steel
Warrantly 1 Year
Feed Grain Size Less 1(mm)
Name Grinding Machine
Transport Package International Standard Packaging
Specification 0.67*0.3*0.3(m)
Trademark KINETIC
Origin China
HS Code 8419409090
Production Capacity 600 Set/Month
Product Description

Maize sifting and flour milling machine

modelpowermotor speedweightvoltagefinenesscapacity
XLD-20002.2kW1500/min48kg220v/50HZ20-200meshes30-70kg/h

working principle:

This machine use activities and the tooth plate relative motion between the fixed tooth plate, the material through the tooth plate impact, friction, shear, impact each other and get crushed material.

The main purpose:

This grinder is popular in homes, drugstores, food processing plants and SPA shops.It is widely used in pharmaceutical, food, chemical industry materials crushed.

1)Various grains: sesame, walnut, rice, black rice, soy, mung bean, peanut, lotus seed, corn, broomcorn, barley, buckwheat, oat, etc.

2) dry medicinals :including almond ,tuckahoe,red jujube,euryale seed,medlar,mastic,dodder seed,angelica and so on.

The machine features:

1) There is little noise, and the machine is stable when it works.

2) With overload protection reminding to ensure your safety

3)The machine can grind all kinds of food and medicines into 20~200 meshes.

4)Simple operation,non dust and fine powder.

5)No screen,and the thickness can be adjusted.

6)Stainless steel ,structure is simple, low energy, easy to clean, is the ideal grinding equipment.

Structure composition:

1. hopper

2. valve regulating valve

3. screwdriver lock

4. comminuted thickness

5. outlet

6. strong magnetic adsorption

7. switch

8. stainless steel hood

9. heat dissipation hole

10 mats
Structure composition:1. hopper2. valve regulating valve3. screwdriver lock4.The adjustment of comminuted thickness5. outlet6. strong magnetic adsorption7. switch8. stainless steel hood9. heat dissipation hole10 mats
Processing process:1. into the material2. push the blanking valve (push off fast, slow down).3. open the power switch and observe the size of the powder.4. successfully pulverized

Maize Sifting and Flour Milling Machine

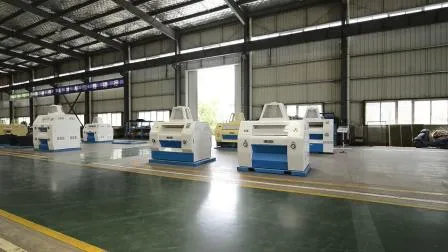

Our factory:
Packing &delivery:
FAQ:

1,What is the voltage/phase for this machine ?220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as theclients' need 2,What is the Mode of transportation ?LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air3,How long can we get the goods?we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
